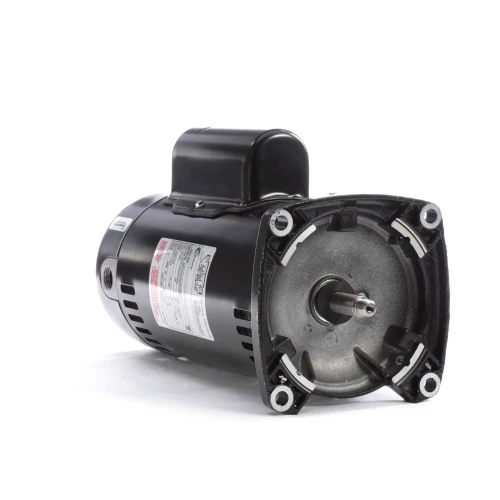

Century SQS1102R Pool Pump Motor 1.65 HP 230V 2-Speed 48Y

Regal Rexnord - Century Motors

$521.95

In Stock — 10+ available

Write a Review
SKU:
SQS1102R
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $34.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Pool Pump Motor
Subcategory:
Two-Speed Pump Motor
Application:
Residential
System Type:
Pool Pump
Installation Type:
OEM Replacement
Voltage:
230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
7.7/2.8 A
Horsepower:
1.65-0.28 HP
RPM:
3450/1725 RPM
Speeds:
2
Frame Size:
48Y Frame
Mounting Type:
Square Flange
Fuel Type:
Electric
Connection Type:
Threaded
Motor Type:
PSC
Power (kW):
1.2 kW
Service Factor:
1.0
Duty:
Continuous
Ambient Temperature:
50°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Shaft Type:
Threaded
Overall Length:
13.82"
Frame Length:
9 15/16"
Mounting Orientation:
Horizontal
Material:
Rolled Steel
Country of Origin:
Mexico
UPC:
786674031235
Lifecycle Status:
Discontinued by manufacturer
Century 1.65 HP two-speed pool pump motor for in-ground applications. Delivers 3450/1725 RPM with 230V single-phase power and 7.7/2.8 amps. Features open drip-proof enclosure, all-copper windings, 303 stainless steel shaft, and automatic overload protection. UL/CSA recognized.
