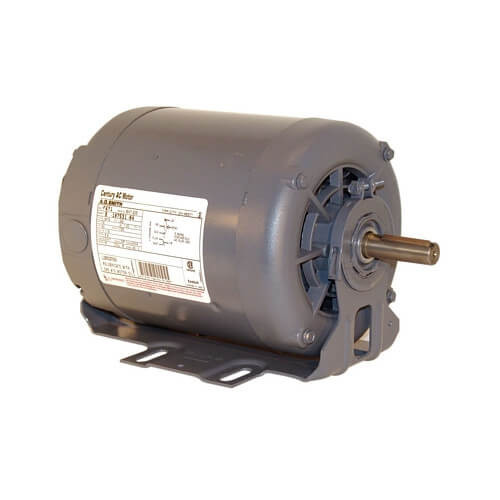

Century SGF2034V4 Fan and Blower Motor 1/3 HP 115V
Regal Rexnord - Century Motors
$283.95
In Stock — 10+ available
- SKU:
- SGF2034V4
Specifications
- Product Type:
- Fan and Blower Motor
- Subcategory:
- Direct Drive Blower
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Fan Coil, Heat Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 6.7/3.3 A
- Horsepower:
- 1/3–1/10 HP
- RPM:
- 1725/1140 RPM
- Speeds:
- 1
- Frame Size:
- 56Z Frame
- Fuel Type:
- Electric
- Mounting Type:
- Resilient Base
- Motor Type:
- Split Phase
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.35
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Sleeve / Sleeve
- Shaft Type:
- Flat
- Overall Length:
- 9.97"
- Frame Length:
- 5 3/16"
- Material:
- Rolled Steel
- Country of Origin:
- Mexico
- UPC:
- 786674030924
- Lifecycle Status:
- Active
Century fan and blower motor for HVAC systems. 1/3–1/10 HP, single-phase, 115V, dual-speed (1725/1140 RPM), 56Z frame, open enclosure. Suitable for furnace blowers, air handlers, and fan coil applications.
