Century 1/3 HP oil burner motor rated for 115/230V single-phase operation at 3450 RPM. Open drip-proof (ODP) enclosure suitable for oil heating system applications. Direct-drive design for reliable ignition and fuel pump operation.

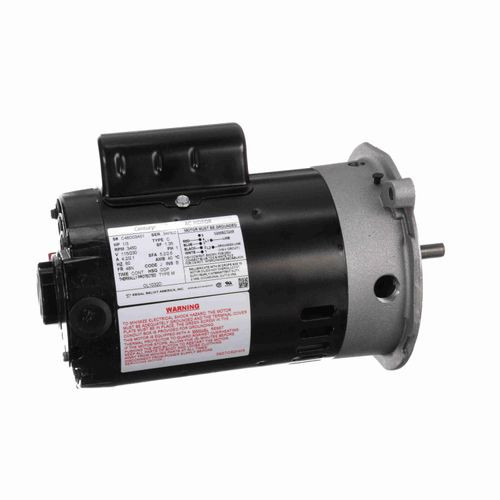

Century OL1032D Oil Burner Motor 1/3 HP 115/230V
Regal Rexnord - Century Motors
$198.95
In Stock — 10+ available
- SKU:
- OL1032D
Specifications
- Product Type:
- Oil Burner Motor
- Application:
- Residential/Commercial
- System Type:
- Oil Furnace, Boiler
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/3 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Fuel Type:
- Oil
- Mounting Type:
- N
- Frame Size:
- 48N Frame
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.35
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Sleeve / Sleeve
- Shaft Type:
- Flat
- Overall Length:
- 11.91"
- Frame Length:
- 6 7/16"
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 786674027788
- Lifecycle Status:
- Active
