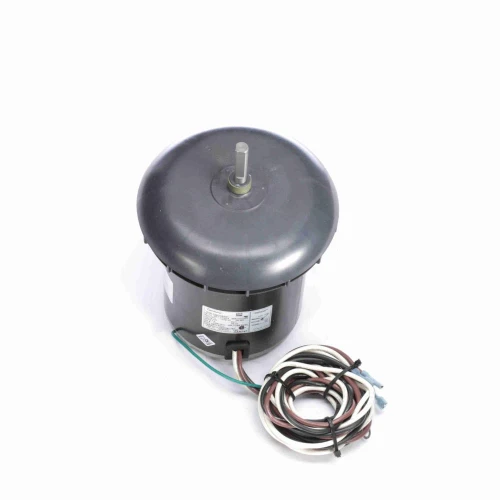

Century OAN747 Motor 3/4 HP 460V 1075RPM 1Ph

Century OAN747 Motor 3/4 HP 460V 1075RPM 1Ph

Regal Rexnord - Century Motors

$497.95

In Stock — 10+ available

Write a Review
SKU:
OAN747
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $32.75 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
OEM Replacement Motor
Subcategory:
General Purpose AC Motor
Application:
Residential/Commercial
System Type:
HVAC/R Equipment, Air Handler, Condenser Fan, Compressor Drive
Installation Type:
OEM Replacement
Voltage:
460V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
2.0 A
Horsepower:
3/4 HP
RPM:
1075 RPM
Speeds:
1
MFD:
15 MFD 370V
Frame Size:
48Y Frame
Mounting Type:
Belly Band Mount
Fuel Type:
Electric
Connection Type:
Quick Connect Terminals
A2L Refrigerant:
Yes
Material:
Rolled Steel
Motor Type:
PSC
Power (kW):
0.56 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
60°C
Starting Method:
Across The Line
Run Capacitor:
15 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Double Flat
Overall Length:
10.36"
Frame Length:
6 1/2"
Mounting Orientation:
Vertical Shaft Up
Country of Origin:
Mexico
UPC:
786674026965
Lifecycle Status:
Active
Century OEM replacement motor, 3/4 HP, single-phase, 460V, 1075 RPM. Semi-enclosed 48Y frame with ball bearings, permanent split capacitor design (15 MFD 370V capacitor required, not included). Thermally protected with 1/2" shaft, belly band mount, vertical shaft up.
!
