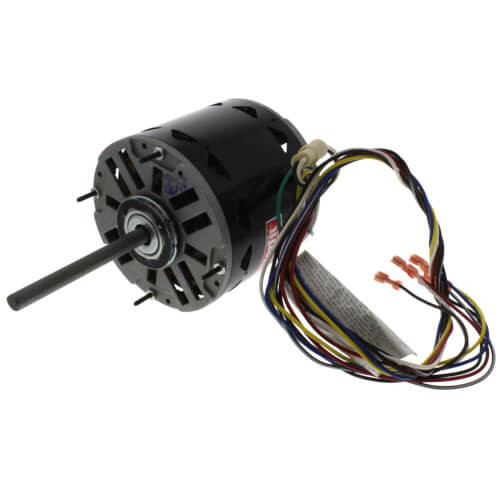

Century Motors FDL6001A Fan Motor 1/2-1/6 HP 115V 1075RPM

Regal Rexnord - Century Motors

$129.95

In Stock — 10+ available

Write a Review
SKU:
FDL6001A
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $26.70 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan and Blower Motor
Subcategory:
Direct Drive Blower
Application:
Residential
System Type:
Split System, Heat Pump, Package Unit, Air Handler, Furnace
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
7.0A
Horsepower:
1/2-1/6 HP
RPM:
1075 RPM
Speeds:
4
MFD:
10 or 5 MFD 370V
Frame Size:
48 Frame
Mounting Type:
Belly Band, Stud Mount, Resilient Ring
Fuel Type:
Electric
Connection Type:
Quick Connect Terminals
Material:
Rolled Steel
A2L Refrigerant:
Yes
Motor Type:
PSC
Power (kW):
0.37 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Run Capacitor:
5 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
10.36"
Frame Length:
4 1/4"
Mounting Orientation:
Horizontal
UPC:
786674054760
Lifecycle Status:
Active
Century MASTERFIT PRO direct-drive fan and blower motor for residential HVAC systems. 1/2–1/6 HP, 115V single-phase, 1075 RPM with 4-speed operation. 48 Frame, open enclosure, ball bearing construction with thermal protection. Requires 10 or 5 MFD 370V capacitor (included). Reversible rotation, 36" leads with quick-connect terminals, belly band or stud mount.
