Century 1/3 HP three-phase general purpose motor rated 230/460V, 1140 RPM, 56-frame drip-proof enclosure. Premium efficiency, sealed bearings, and heavy-duty rolled steel construction.

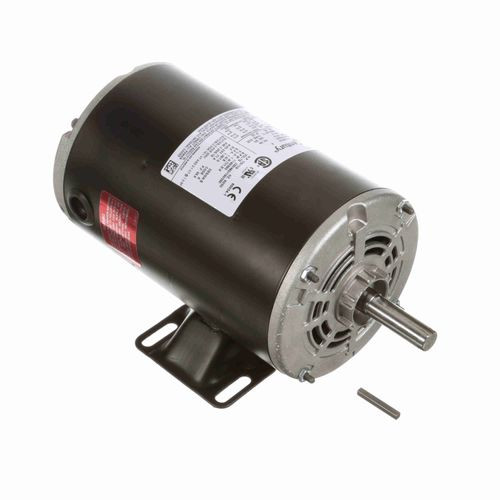

Century H267ES General Purpose Motor 1/3 HP 3-Phase 230/460V
Regal Rexnord - Century Motors
$322.95
In Stock
- SKU:
- H267ES
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase AC Motor
- Application:
- Commercial/Industrial
- System Type:
- Industrial Equipment, Compressors, Pumps, Fans, Conveyors
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 1.4/0.7 A
- Horsepower:
- 1/3 HP
- RPM:
- 1140 RPM
- Speeds:
- 1
- Frame Size:
- 56 Frame
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Mounting Type:
- Rigid Base
- Motor Type:
- Three Phase
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.35
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- Keyed
- Overall Length:
- 11 15/16"
- Frame Length:
- 8 1/8"
- Country of Origin:
- Mexico
- UPC:
- 786674072252
- Lifecycle Status:
- Discontinued by manufacturer
