Century 0.75 HP three-phase general purpose motor with TEFC enclosure, rated for 200-230/460V operation at 1725/1425 RPM dual speeds. Suitable for HVAC applications including air handlers, condensers, and compressors. Built for industrial and commercial duty.

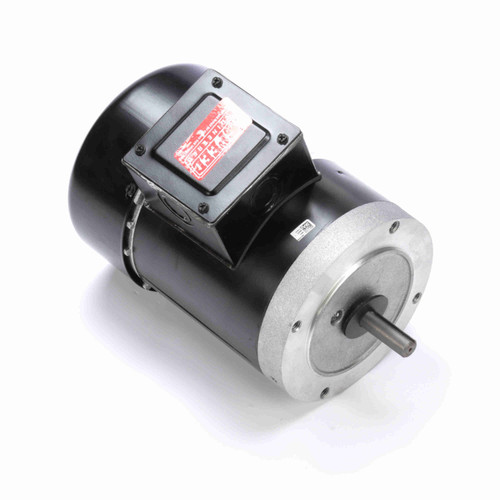

Century H063L General Purpose Motor 0.75 HP 3-Phase TEFC
Regal Rexnord - Century Motors
$455.95
In Stock
- Replaced by
- FX34BK004
- SKU:
- H063L
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial/Industrial
- System Type:
- Air Handler, Condenser, Compressor, Package Unit, Rooftop Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 200-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 0.75 HP
- RPM:
- 1725/1425 RPM
- Speeds:
- 2
- Mounting Type:
- Round
- Frame Size:
- 56C Frame
- Motor Type:
- Three Phase
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.15
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- Keyed
- Overall Length:
- 11.71"
- Frame Length:
- 5 1/2"
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 786674055750
- Lifecycle Status:
- Discontinued by manufacturer
