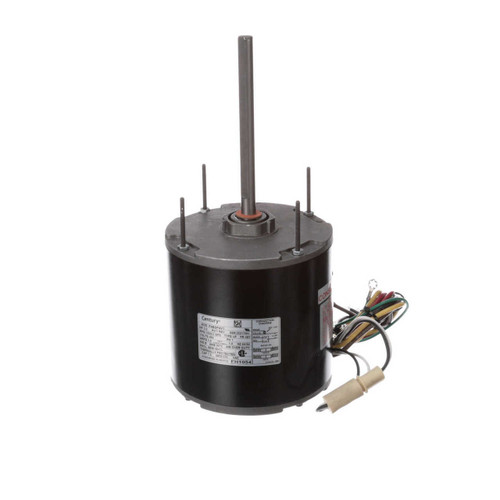

Century FH1054 Condenser Fan Motor 1/2 HP 460V 1625 RPM

Regal Rexnord - Century Motors

$433.95

In Stock — 10+ available

Write a Review
SKU:
FH1054
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $26.70 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
PSC Permanent Split Capacitor Motor
Application:
Residential/Commercial
System Type:
Split System, Heat Pump, Refrigeration
Installation Type:
OEM Replacement
Voltage:
460V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
1.4A
Horsepower:
1/2 HP
RPM:
1625 RPM
Speeds:
2
MFD:
7.5 MFD
Mounting Type:
All-Angle Mount
Fuel Type:
Electric
Frame Size:
48Y Frame
Motor Type:
PSC
Power (kW):
0.37 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
60°C
Starting Method:
Across The Line
Run Capacitor:
7.5 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
12.24"
Frame Length:
4 3/4"
Mounting Orientation:
Any
Assembly Position:
Any
Material:
Rolled Steel
Certifications:
UL Recognized, CSA, A2L Compliant
Country of Origin:
India
UPC:
786674021069
Lifecycle Status:
Active
Century FH1054 is a 1/2 HP, 2-speed permanent split capacitor (PSC) motor rated for 460V, 60 Hz operation at 1625 RPM. Designed for condenser, heat pump, and refrigeration applications in HVAC systems. Features totally enclosed air-over (TEAO) enclosure, ball bearings, reversible rotation via 2-prong plug, and Class B insulation rated for 60°C ambient. Requires 7.5 MFD capacitor.
