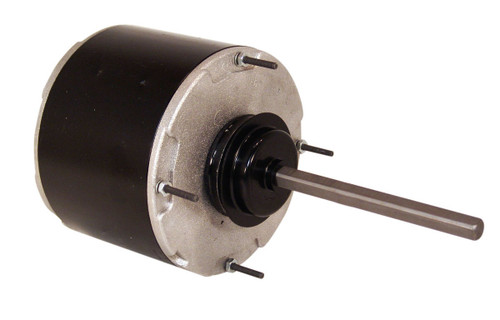

Century FEH1056D Condenser Fan Motor 1/2 HP 208-230/460V

Regal Rexnord - Century Motors

$252.95

In Stock

Write a Review
SKU:
FEH1056D
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $28.35 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Single-Phase Direct-Drive
Application:
Residential/Commercial
System Type:
Split System, Package Unit, Rooftop Unit
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1/2 HP
RPM:
1075 RPM
Speeds:
1
Mounting Type:
Direct Drive
Frame Size:
48Y Frame
Motor Type:
PSC
Power (kW):
0.37 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
60°C
Starting Method:
Across The Line
Run Capacitor:
10 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Double Flat
Overall Length:
12.11"
Frame Length:
5"
Mounting Orientation:
Any
Assembly Position:
Any
Material:
Rolled Steel
Certifications:
UL Recognized, CSA, A2L Compliant
Country of Origin:
Mexico
UPC:
786674020970
Lifecycle Status:
Active
Century 1/2 HP condenser fan motor rated for 208-230/460V, 1075 RPM single-phase operation. TEAO enclosure suitable for outdoor condenser unit mounting. Direct-drive design with reversible rotation for flexible installation.
