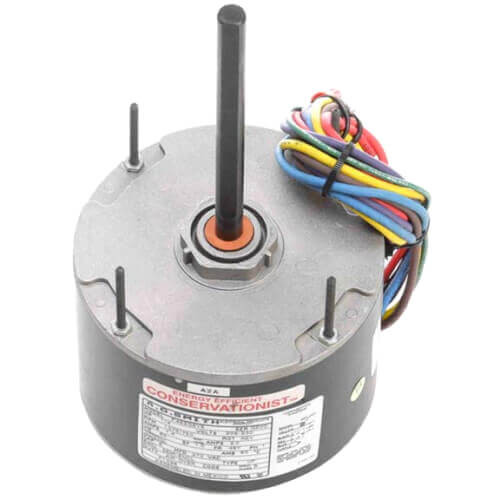

Century FE6002F Condenser Fan Motor 1/2 HP 208-230V
Regal Rexnord - Century Motors
$152.95
In Stock — 10+ available
- SKU:
- FE6002F
Specifications
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Direct Drive
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/2, 1/4 HP
- RPM:
- 1075 RPM
- Speeds:
- 2
- Fuel Type:
- Electric
- Mounting Type:
- Extended Studs
- Frame Size:
- 48 Frame
- Motor Type:
- PSC
- Power (kW):
- 0.37 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 70°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 10 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Double Flat
- Overall Length:
- 12.74"
- Frame Length:
- 4 3/4"
- Mounting Orientation:
- Any
- Assembly Position:
- Any
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, A2L Certified
- UPC:
- 786674053107
- Lifecycle Status:
- Active
Century FE6002F condenser fan motor delivers 1/2 HP at 1075 RPM for residential and light commercial air conditioning systems. Single-phase, TEAO enclosure, 208-230V operation. Direct replacement for Century multi-horsepower condenser applications.
