Regal FDL1034 permanent split capacitor (PSC) blower motor for HVAC air handlers and furnace blowers. Delivers 1/3 HP at 1625 RPM with three-speed operation on 115V single-phase power. Features 48Y NEMA frame, open enclosure, sleeve bearing construction, and reversible rotation for flexible installation.

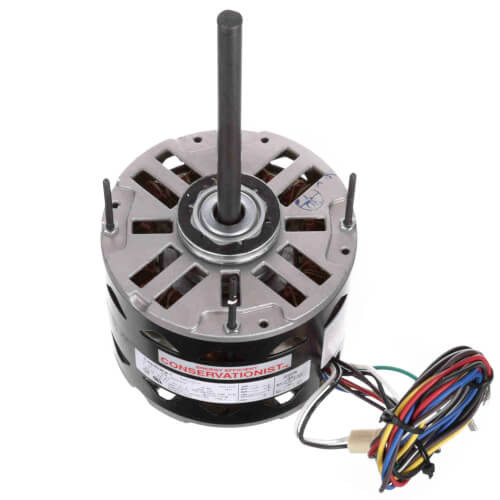

Century FDL1034 Fan Motor 1/3 HP 115V 1625 RPM
Regal Rexnord - Century Motors
$205.95
In Stock — 10+ available
Write a Review
Write a Review
Regal Rexnord - Century Motors
Century FDL1034 Fan Motor 1/3 HP 115V 1625 RPM
- SKU:
- FDL1034
Specifications
- Product Type:
- Permanent Split Capacitor (PSC) Blower Motor
- Subcategory:
- Blower Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Split System
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 4.0A
- Horsepower:
- 1/3 HP
- RPM:
- 1625 RPM
- Speeds:
- 3
- Frame Size:
- 48Y Frame
- Mounting Type:
- Belly Band, Resilient Ring, Stud Mount
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- PSC
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 15 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Overall Length:
- 11.55"
- Frame Length:
- 4"
- Mounting Orientation:
- Any
- Assembly Position:
- Any
- Country of Origin:
- India
- UPC:
- 786674020581
- Lifecycle Status:
- Active
