Century FD1036 direct-drive fan and blower motor rated 1/3 HP at 208-230V, 1075 RPM single-speed operation. Open air-over enclosure suitable for residential and light commercial HVAC systems. Reversible rotation with 1/2" shaft.

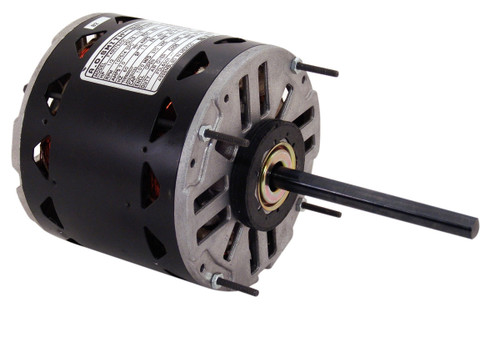

Century FD1036 Fan Blower Motor 1/3 HP 208-230V
Regal Rexnord - Century Motors
$188.95
In Stock — 10+ available
- SKU:
- FD1036
Specifications
- Product Type:
- Fan Blower Motor
- Subcategory:
- Direct Drive Blower
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/3 HP
- RPM:
- 1075 RPM
- Speeds:
- 3
- Mounting Type:
- Direct Drive
- Fuel Type:
- Electric
- Frame Size:
- 48Y Frame
- Motor Type:
- PSC
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 50°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 5 MFD 370V
- Bearings:
- Sleeve / Sleeve
- Shaft Type:
- Flat
- Overall Length:
- 11.55"
- Frame Length:
- 4"
- Mounting Orientation:
- Horizontal
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, A2L Compliant
- Country of Origin:
- India
- UPC:
- 786674020482
- Lifecycle Status:
- Active
