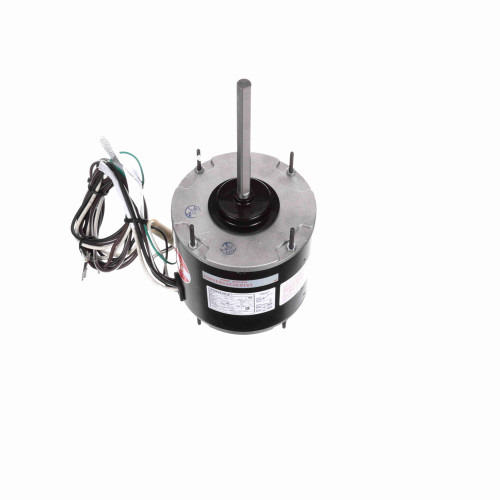

Century EM3209F Condenser Fan Motor 1/3 HP 460V 825 RPM

Regal Rexnord - Century Motors

$159.95

In Stock — 10+ available

Write a Review
SKU:
EM3209F
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $26.70 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Single-Phase PSC Motor
Application:
Residential/Commercial
System Type:
Split System, Package Unit, Condenser Unit
Installation Type:
OEM Replacement
Voltage:
460V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
1.0A
Horsepower:
1/3-1/8 HP
RPM:
825 RPM
Speeds:
1
MFD:
7.5 MFD 370V
Frame Size:
48Y Frame
Mounting Type:
Belly Band
Fuel Type:
Electric
Motor Type:
PSC
Power (kW):
0.25 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
70°C
Starting Method:
Across The Line
Run Capacitor:
7.5 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
11.8"
Frame Length:
5.24"
Mounting Orientation:
Any
Material:
Rolled Steel
Certifications:
UL Recognized, CSA, A2L Certified
Country of Origin:
India
UPC:
786674069887
Lifecycle Status:
Active
Century EM3209F TEAO condenser fan motor for HVAC systems. 1/3–1/8 HP, 460V single-phase, 825 RPM, 48Y frame with reversible rotation. Includes 36" leads and belly band mounting. Requires 7.5 MFD capacitor (sold separately).
