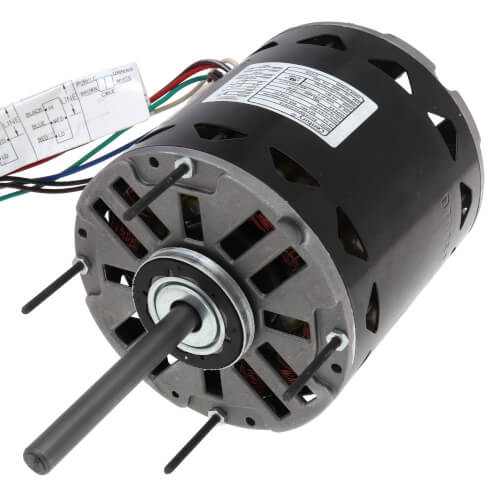

Century D1076 Direct-Drive Blower Motor 3/4 HP 208-230V

Regal Rexnord - Century Motors

$168.95

In Stock — 10+ available

Write a Review
SKU:
D1076
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $27.80 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan and Blower Motor
Subcategory:
Direct-Drive Blower
Application:
Residential
System Type:
Split System, Heat Pump, Package Unit, Air Handler, Furnace
Installation Type:
OEM Replacement
Voltage:
208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
5.5A
Horsepower:
3/4 HP
RPM:
1075 RPM
Speeds:
3
MFD:
10 MFD 370V
Frame Size:
48 Frame
Mounting Type:
Belly Band, Stud Mount
Fuel Type:
Electric
Material:
Rolled Steel
A2L Refrigerant:
Yes
Motor Type:
PSC
Power (kW):
0.56 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Run Capacitor:
10 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
10.61"
Frame Length:
5"
Mounting Orientation:
Horizontal
Country of Origin:
India
UPC:
786674017857
Lifecycle Status:
Active
Century 3/4 HP direct-drive fan and blower motor for HVAC systems. Single-phase, 60 Hz, 208-230V, 1075 RPM with 3-speed capability. 48 Frame, open enclosure, thermally protected with Class B insulation. Requires 10 MFD 370V capacitor (not included). Reversible rotation, belly band or stud mount.
