Century 1.5 HP general purpose motor with 1 phase, TEFC enclosure, and 1725 RPM speed. Rated for 115/208-230V operation. Suitable for HVAC applications including fan and blower duty. Regal Rexnord brand.

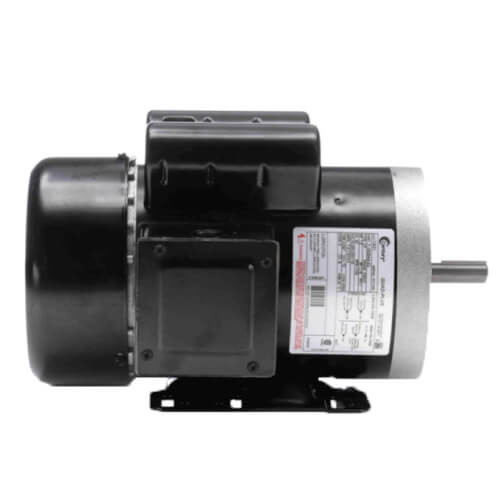

Century C831 General Purpose Motor 1.5 HP 1725 RPM
Regal Rexnord - Century Motors
$551.95
In Stock
- SKU:
- C831
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- HVAC Fan/Blower Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Fan Coil, Condenser Fan
- Installation Type:
- OEM Replacement
- Voltage:
- 115/208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1.5 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Mounting Type:
- Rigid Base
- Frame Size:
- 56HC Frame
- Motor Type:
- Capacitor Start / Capacitor Run
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.15
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- Keyed
- Overall Length:
- 13.71"
- Frame Length:
- 7 1/2"
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 786674017024
- Lifecycle Status:
- Active
