Century 1/3 HP general purpose motor with TEFC enclosure rated for 115/208-230V single-phase operation at 1725 RPM. Suitable for HVAC blowers, pumps, and other light-duty applications. OEM replacement for Regal Rexnord equipment.

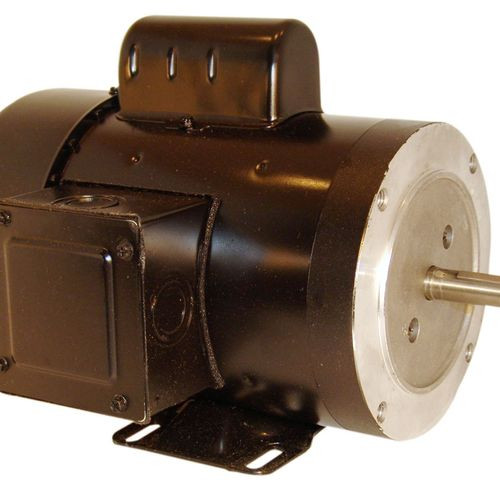

Century C824 General Purpose Motor 1/3 HP 115/208-230V
Regal Rexnord - Century Motors
$319.95
In Stock
- SKU:
- C824
Specifications
- Product Type:
- General Purpose Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Heat Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 115/208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/3 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Fuel Type:
- Electric
- Mounting Type:
- Rigid Base
- Frame Size:
- 56C Frame
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.15
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- Keyed
- Overall Length:
- 12.21"
- Frame Length:
- 6"
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 786674016959
- Lifecycle Status:
- Active
