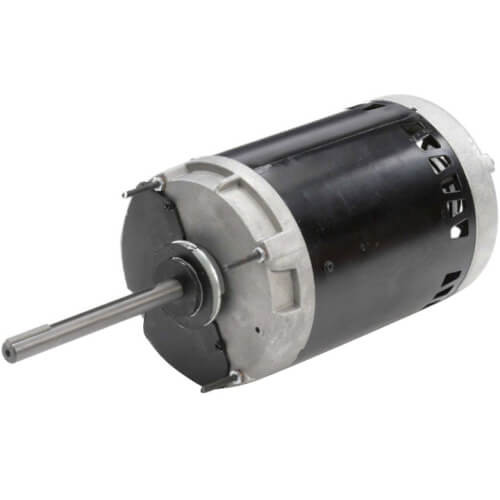

Century C784 Condenser Fan Motor 1/2 HP 850 RPM 115/208-230V

Regal Rexnord - Century Motors

$552.95

In Stock

Write a Review
SKU:
C784
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $37.70 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Direct Drive
Application:
Residential/Commercial
System Type:
Split System, Package Unit
Installation Type:
OEM Replacement
Voltage:
115/208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
6.6/4.0-3.3 A
Horsepower:
1/2 HP
RPM:
850 RPM
Speeds:
1
MFD:
15 MFD 370V
Mounting Type:
Resilient Ring Mount
Temperature Range:
0°C to 60°C
Fuel Type:
Electric
Frame Size:
56Y Frame
Motor Type:
PSC
Power (kW):
0.37 kW
Service Factor:
1.0
Duty:
Continuous
Ambient Temperature:
60°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Shaft Type:
Keyed
Overall Length:
16 7/8"
Frame Length:
6 3/4"
Material:
Rolled Steel
Certifications:
UL Recognized, CSA
Country of Origin:
Mexico
UPC:
786674016904
Lifecycle Status:
Active
Century condenser fan motor designed for HVAC air conditioning units. 1/2 HP, 850 RPM, single-phase operation at 115/208-230V with 6.5" diameter frame. Features ball bearings, resilient mounting rings, and requires a 15 MFD 370V capacitor. Rated for ambient temperatures up to 60°C.
