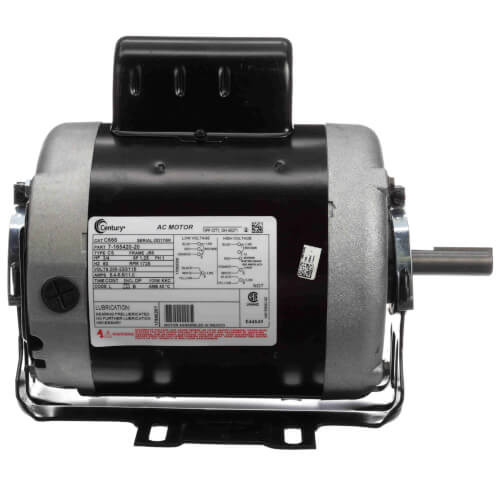

Century C666V1 Fan and Blower Motor 0.75 HP 115/208-230V
Regal Rexnord - Century Motors
$372.95
In Stock — 10+ available
- SKU:
- C666V1
Specifications
- Product Type:
- Fan and Blower Motor
- Subcategory:
- HVAC/R Motor
- Application:
- Residential/Commercial
- System Type:
- Split System, Heat Pump, Package Unit, Air Handler, Furnace
- Installation Type:
- OEM Replacement
- Voltage:
- 115/208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 11.0/5.3-5.5 A
- Horsepower:
- 0.75 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 56 Frame
- Mounting Type:
- Vertical/Horizontal
- Temperature Range:
- 40°C to 70°C
- Fuel Type:
- Electric
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.25
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- Nema 56
- Overall Length:
- 12.16"
- Frame Length:
- 7.24"
- Material:
- Rolled Steel
- Country of Origin:
- Mexico
- UPC:
- 786674074706
- Lifecycle Status:
- Active
Century 0.75 HP fan and blower motor rated for 115/208-230V single-phase 60 Hz operation at 1725 RPM. Features drip-proof (ODP) enclosure, 56 frame size, permanently lubricated double-sealed bearings, and automatic reset thermal protector. Suitable for HVAC/R applications with vertical or horizontal mounting flexibility.
