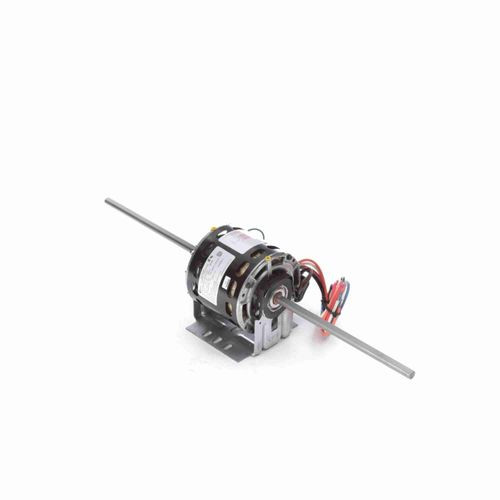

Century 9476B Fan Coil Motor 1/6-1/15 HP 115V 1PH

Regal Rexnord - Century Motors

$229.95

In Stock — 10+ available

Write a Review
SKU:
9476B
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $25.12 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan Coil & Air Conditioner Motor
Subcategory:
Multi-Speed PSC Motor
Application:
Residential/Commercial
System Type:
Fan Coil, Air Handler, Split System
Installation Type:
OEM Replacement
Voltage:
115V
Phase:
Single Phase
Amperage:
2.17, 1.58, 1.22, 1 A
Horsepower:
1/6, 1/8, 1/10, 1/15 HP
RPM:
1625 RPM
Speeds:
4
MFD:
5 MFD 370V
Frame Size:
42 Frame
Mounting Type:
Resilient Base
Temperature Range:
40°C Ambient
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
PSC
Power (kW):
0.13 kW
Service Factor:
1.0
Duty:
Continuous Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Run Capacitor:
5 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Frame Length:
4.58"
Country of Origin:
Mexico
UPC:
786674077479
Lifecycle Status:
Active
Century 4-speed fan coil and air conditioner motor, 1/6–1/15 HP, 115V single-phase, 1625 RPM, 42 Frame with open air-over enclosure. Permanent split capacitor design with automatic thermal protection, ball bearings, and resilient base mounting.
