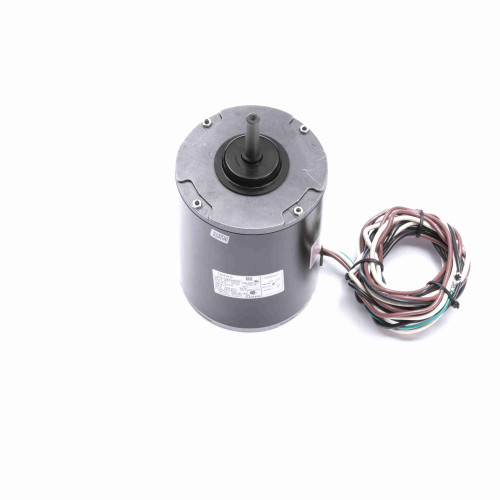

Century 9406A OEM Replacement Motor 3/4 HP 208-230V 1075 RPM

Regal Rexnord - Century Motors

$546.95

In Stock — 10+ available

Write a Review
SKU:
9406A
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $30.55 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
OEM Replacement Motor
Subcategory:
Condenser Fan Motor
Application:
Residential/Commercial
System Type:
Split System, Heat Pump, Package Unit, Air Handler
Installation Type:
OEM Replacement
Voltage:
208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
6.6, 3.7, 2.5 A
Horsepower:
3/4, 1/2, 1/3 HP
RPM:
1075 RPM
Speeds:
3
MFD:
10 MFD 370V
Frame Size:
48Y Frame
Mounting Type:
Resilient Base
Fuel Type:
Electric
A2L Refrigerant:
Yes
Motor Type:
PSC
Power (kW):
0.56 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Run Capacitor:
10 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
18"
Frame Length:
5 5/8"
Mounting Orientation:
Any
Material:
Rolled Steel
Country of Origin:
India
UPC:
786674011213
Lifecycle Status:
Active
Century OEM replacement motor for HVAC/R applications. 3/4, 1/2, 1/3 HP multi-speed (3-speed) PSC motor, 208-230V single-phase 60 Hz, 1075 RPM. 48 Frame, open enclosure, thermally protected, ball bearing construction with 5/8" double shaft. Requires 10 MFD 370V capacitor (sold separately).
