Century OEM replacement motor for HVAC blowers and air handlers. 1/8 HP, 115V single-phase, 3-speed (775/650/525 RPM), NEMA 48Y frame with 1/2" double shaft. Permanent split capacitor (PSC) design with included 6 MFD 370V capacitor. Open air-over enclosure, automatic thermal protection, Class B insulation. UL/CSA recognized.

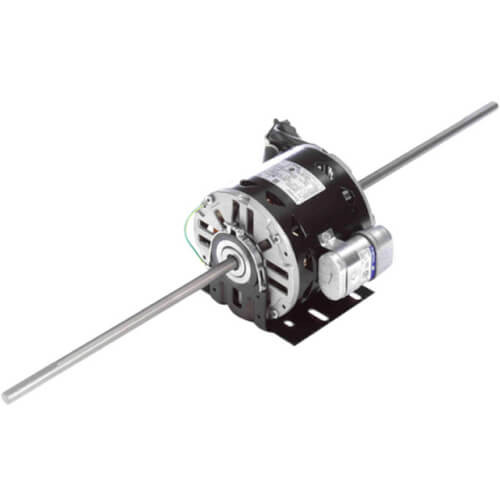

Century 680A OEM Replacement Motor 1/8 HP 115V 3-Speed
Regal Rexnord - Century Motors
$486.95
In Stock — 10+ available
- SKU:
- 680A
Specifications
- Product Type:
- OEM Replacement Motor
- Subcategory:
- Blower Motor
- Application:
- Residential/Commercial
- System Type:
- Air Handler, Furnace, Fan Coil Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 1.5A
- Horsepower:
- 1/8 HP
- RPM:
- 775/650/525 RPM
- Speeds:
- 3
- MFD:
- 6 MFD 370V
- Frame Size:
- 48Y Frame
- Mounting Type:
- Resilient Base
- Fuel Type:
- Electric
- Motor Type:
- PSC
- Power (kW):
- 0.1 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 6 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Overall Length:
- 28"
- Frame Length:
- 4 1/4"
- Mounting Orientation:
- Horizontal
- Material:
- Rolled Steel
- Country of Origin:
- India
- UPC:
- 786674010582
- Lifecycle Status:
- Active
