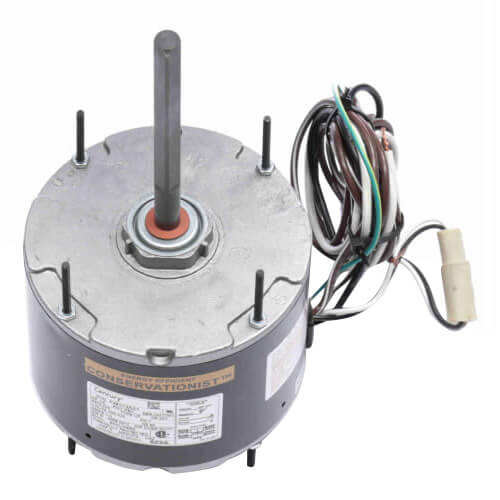

Century 629A OEM Replacement Motor 1/6 HP 208-230V 825 RPM
Regal Rexnord - Century Motors
$172.95
In Stock — 10+ available
- Replaced by
- FE1018SF
- SKU:
- 629A
Specifications
- Product Type:
- OEM Replacement Motor
- Subcategory:
- Furnace Blower / HVAC
- Application:
- Residential
- System Type:
- Furnace, Air Handler, Fan Coil
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 1.0 A
- Horsepower:
- 1/6 HP
- RPM:
- 825 RPM
- Speeds:
- 1
- MFD:
- 5 MFD 370V
- Frame Size:
- 48Y Frame
- Mounting Type:
- Stud Mount
- Fuel Type:
- Electric
- Motor Type:
- PSC
- Power (kW):
- 0.13 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 60°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 5 MFD 370V
- Bearings:
- Sleeve / Sleeve
- Shaft Type:
- Double Flat
- Overall Length:
- 11.14"
- Frame Length:
- 3 5/8"
- Mounting Orientation:
- Any
- Assembly Position:
- Any
- Material:
- Rolled Steel
- UPC:
- 786674010469
- Lifecycle Status:
- Discontinued by manufacturer
Century OEM replacement motor for HVAC applications. 1/6 HP, single-phase, 208-230V, 825 RPM, 48 Frame, TEAO enclosure with automatic thermal protection. Permanent Split Capacitor (PSC) design requires 5 MFD 370V capacitor (sold separately).
