Caleffi Z141000 is a 24V normally closed zone valve actuator with 18-inch wire leads for hydronic heating and cooling systems. Features spring return, hermetically sealed end switch, and manual override. Compatible with 2-way and 3-way zone valves up to 1-1/4" in size.

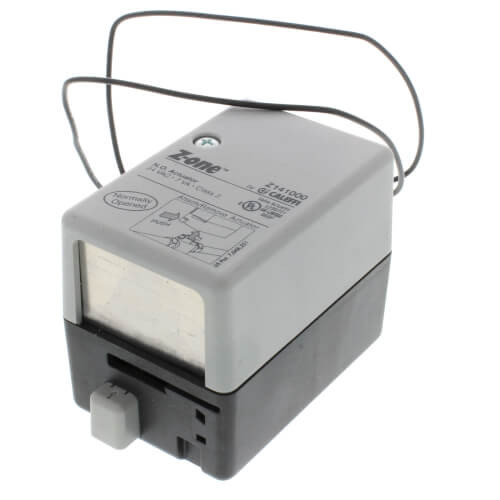

Caleffi Z141000 Zone Valve Actuator 24V 18" Lead
Caleffi
$96.95
In Stock
Write a Review
Write a Review
Caleffi
Caleffi Z141000 Zone Valve Actuator 24V 18" Lead
- SKU:
- Z141000
Specifications
- Product Type:
- Zone Valve Actuator
- Subcategory:
- Motorized Actuator
- Application:
- Residential/Commercial
- System Type:
- Boiler, Hydronic Heating, Chiller, Radiant Floor
- Installation Type:
- OEM Replacement
- Voltage:
- 24V AC
- Voltage Class:
- Low Voltage
- Amperage:
- 0.4A
- Mounting Type:
- Snap-On
- Temperature Range:
- 32°F to 240°F
- Pressure Rating:
- 300 PSI
- Connection / Joint:
- NPT, Sweat
- Material:
- Forged brass body, stainless steel stem, brass seat, EPDM paddle, aluminum actuator base plate, polycarbonate actuator housing
- Control Type:
- Low Voltage
